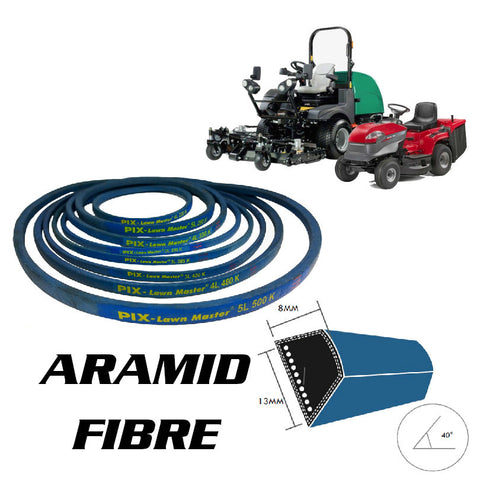

4L320K-A30 Performance Agri/garden Lawn Mower V-Belt with Aramid Fiber
DRY-4L0320 KEVLAR

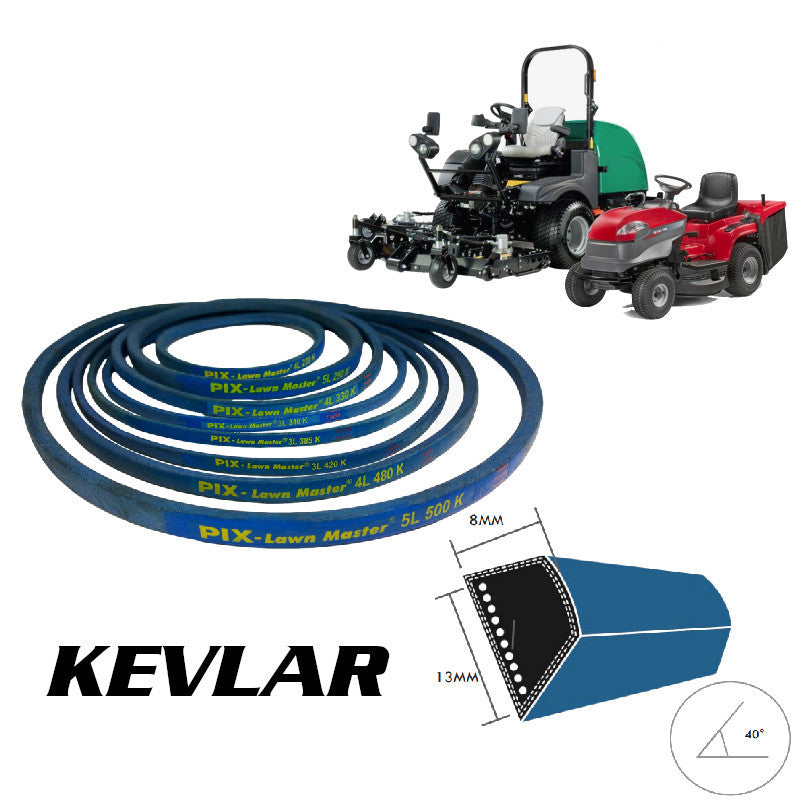

4L0320K-A30 PERFORMANCE AGRI/GARDEN LAWN MOWER V-BELT WITH DUPONT™ KEVLAR
Belts have large diameter ARAMID KEVLAR cords, impregnated with special compound which eliminates the need for re-tensioning. Our belts are able to withstand high levels of reverse flexing usually associated with "serpentine" drives, and external idler placement with high resistance to oil, heat and cracking.
- Specifications
- High tensile strength
- Non extensibility
- High resistance to shock loads
- High resistance to wear and tear
- Reduced slippage while clutching
- High resistance to repeated reverse flexing
- High resistance to oil, heat, and cracking
STANDARDS, DIMENSIONS & PRODUCT RANGE
| Section | Dimensions | Angle (Deg) | Standard | Recom. Min Pulley Dia. (mm) | Manufacturing Range | |||
|---|---|---|---|---|---|---|---|---|
| Top Width (mm) | Thickness (mm) | Min | Max | Length Desig. | ||||
| 3L | 10 | 6 | 40 | RMA IP 23 | 39 | 266 | 4064 | Belt No. ÷ 10 = Outside length in inches |
| 4L | 13 | 8 | 40 | RMA IP 23 | 64 | 381 | 9144 | Belt No. ÷ 10 = Outside length in inches |
| 5L | 17 | 10 | 40 | RMA IP 23 | 89 | 533 | 5588 | Belt No. ÷ 10 = Outside length in inches |
