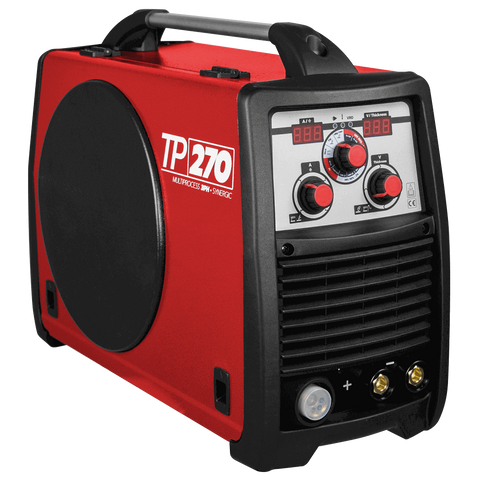

Helvi Tp270 Inverter Multi-Purpose Welder 400V (Machine Only)
Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters. In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Regulation of the slope-up motor, automatic soft start wire feed control of the arc. Its simplicity and versatility make it perfect for use in body shops, workshops and for all maintenance tasks. All of the functions can be easily selected on the front panel. Digital displays show the welding voltage and current and all the parameters selected. Fitted to accept reels with diameter of 300mm and 200mm.
| Input voltage (3ph) | 400V 50/60Hz | ||
| Power 60% | 7 KVA | ||
| MMA | TIG | MIG | |
|---|---|---|---|
| No load output voltage | 56 ÷ 12 V | 56 ÷ 12 V | 45 ÷ 12 V |
| Amp. min-max | 25 ÷ 200 A | 5 ÷ 270 A | 30 ÷ 270 A |
| Amp. 60974-1 | 40% 200 A 60% 155 A 100% 125 A |
40% 270 A 60% 220 A 100% 170 A |
40% 270 A 60% 220 A 100% 170 A |
| Aluminium | - | - | Ø 0,8 ÷ 1,2 mm |
| Steel | - | - | Ø 0,6 ÷ 1,2 mm |
| Flux core | - | - | Ø 0,8 ÷ 1,2 mm |
| Stainless Steel | - | - | Ø 0,8 ÷ 1,2 mm |
| Brazing | - | - | Ø 0,8 ÷ 1,2 mm |
| Ø E | 1,6 ÷ 4 mm | - | - |
| Insulation | H | ||
| Protec. Degree | IP22S | ||
| Machine (LxWxH) | 600x255x480 mm | ||
| Package (LxWxH) | 750x400x515 mm | ||
| Weight box/net | 33,6 / 29,2 Kg | ||
| Code | 99825003K | ||
