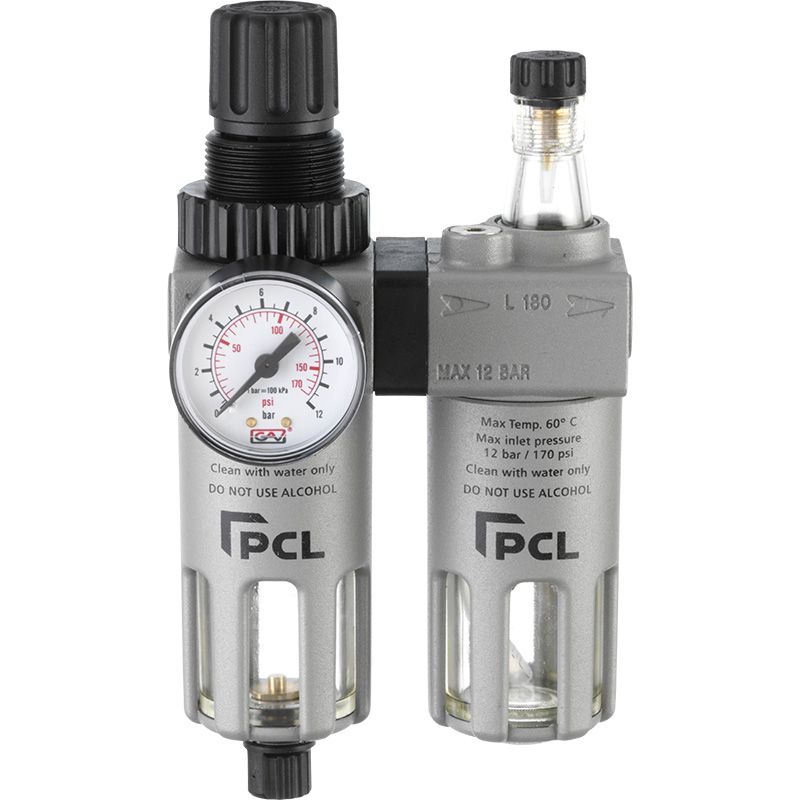

PCL 1/4" Air Treatment Air Filter / Regulator & Lubricator with Bracket and Gauge
ATCFRL6
PCL's Filter-Regulator units are designed to eliminate moisture and particulates from the air flow and efficiently filters to 10 microns. Featuring polycarbonate bowls, allowing the user to easily monitor the element's condition and the collected liquid's level. The bowl is surrounded with protective metal as a safety measure to protect the user in case of excessive pressures, temperatures, or aggressive chemicals.
- Specifications
- Manual/semi automatic drain
- Locking device
- Complete with wall bracket and pressure gauge
- Type: Filter-Regulator-Lubricator
- Filtration Size: 10 µm
- Inlet / Outlet Connection: 1/4 in
- Drain Connection: 1/8 in
- Maximum Inlet Pressure: 12 bar
- Drain Type: Manual / Semi Automatic
- Capacity of oil bowl: 30 ml
- Temperature Range: -10°C to 60°C
- Adjustment: 0 - 10 bar
